產品特性
工作站性能新境

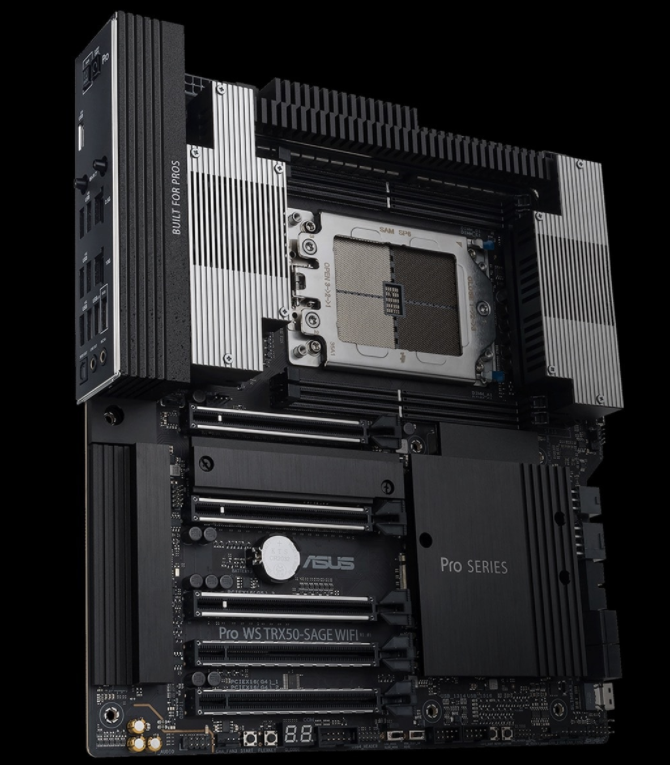

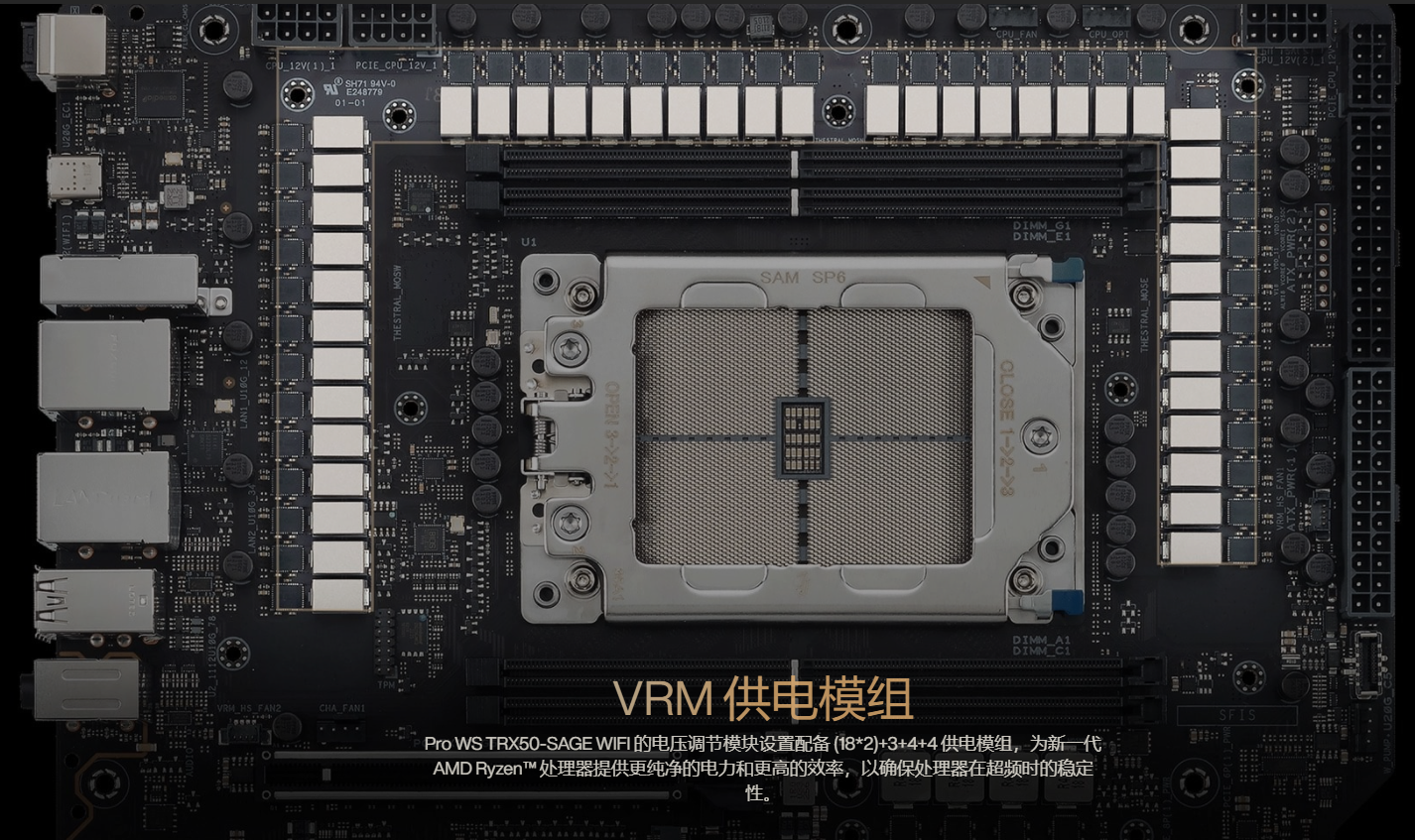

Pro WS TRX50-SAGE WIFI 主板提供疾速的傳輸速度，廣泛的兼容性及出色的穩定性，專為內容創作、軟件開發、機器學習等專業用戶而量身打造。配備36供電模組可充分釋放 AMD Ryzen Threadripper? PRO 7000 WX 系列和 AMD Ryzen Threadripper? 7000 系列處理器（多達96核）潛力，同時可擴展至 1TB 的 R-DIMM DDR5 內存，可滿足專業人士追求應用程序上限性能的需求。

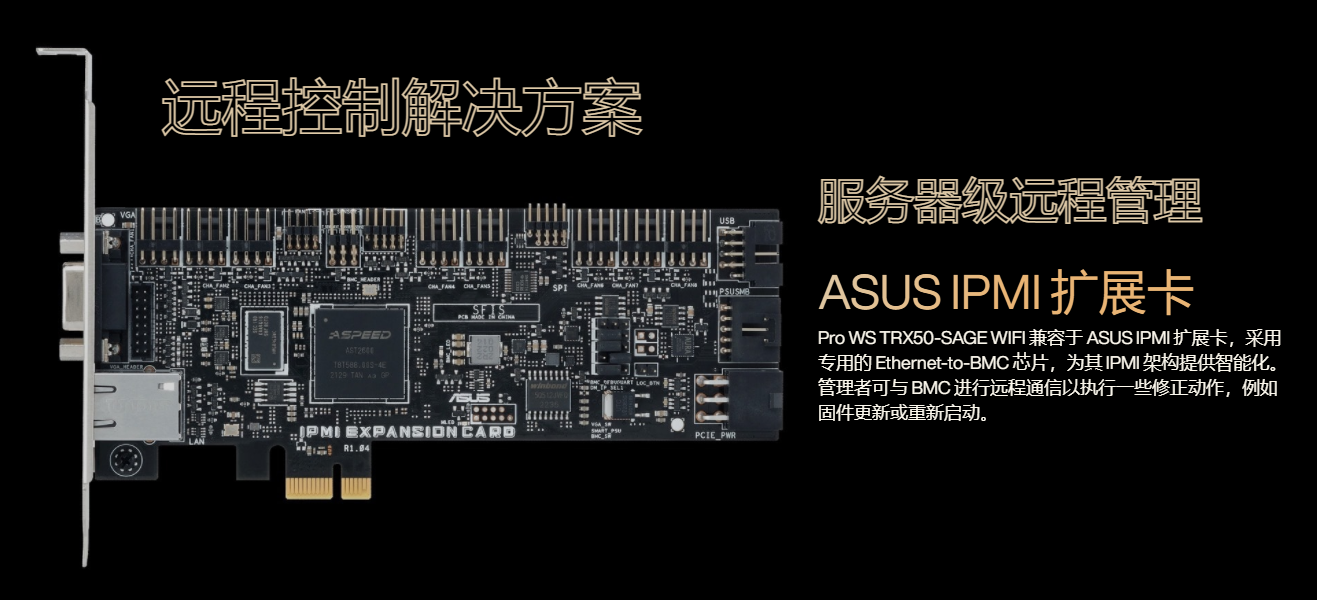

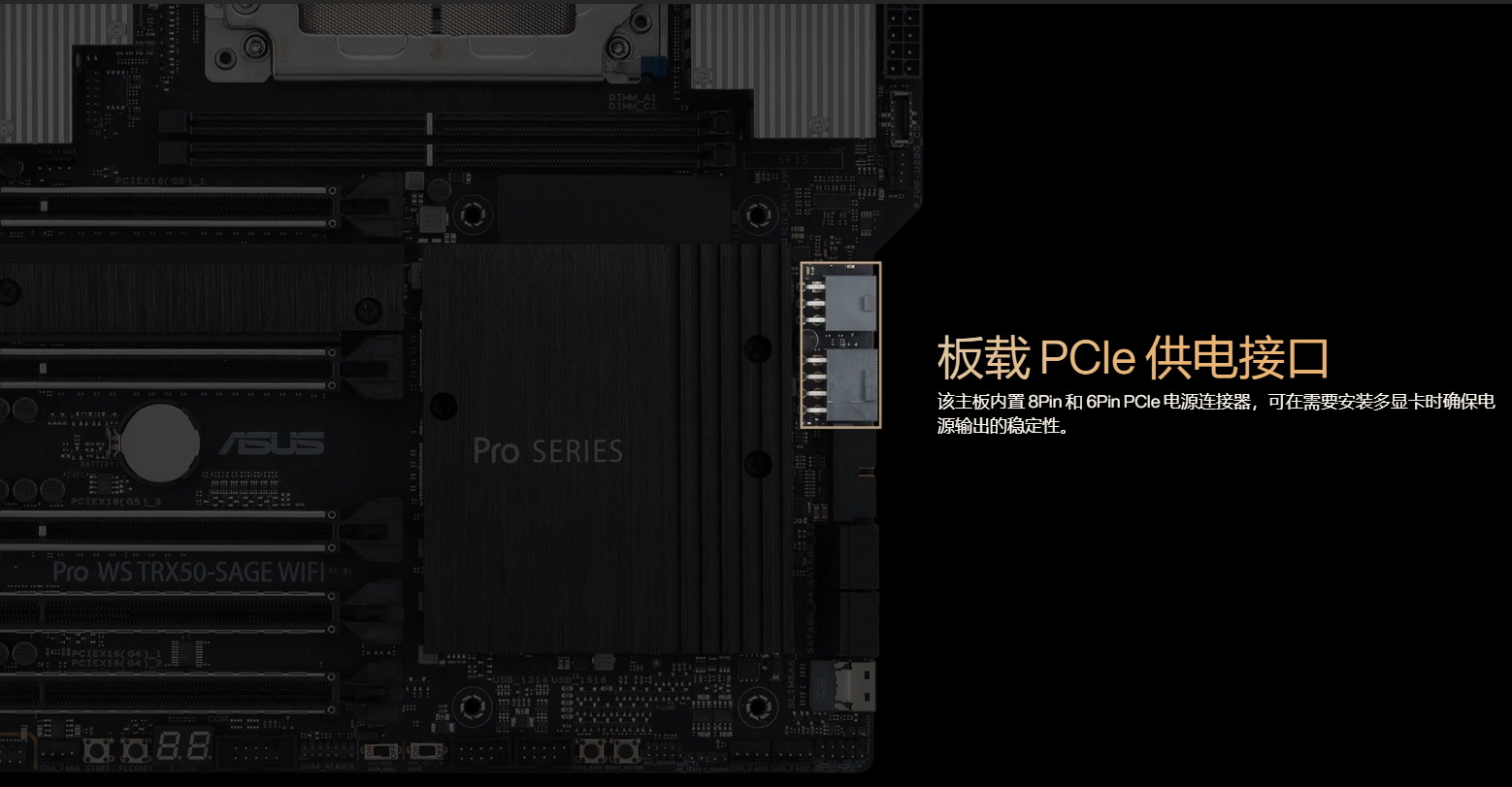

得益于板載 PCIe? 供電接口額外支持多顯卡，VRM 散熱片上的主動式散熱和熱管，WiFi 7，USB 20Gbps 接口，SlimSAS 和支持 IMPI，Pro WS TRX50-SAGE WIFI 已為各種場景及行業應用做好準備。
支持 CPU 和內存超頻

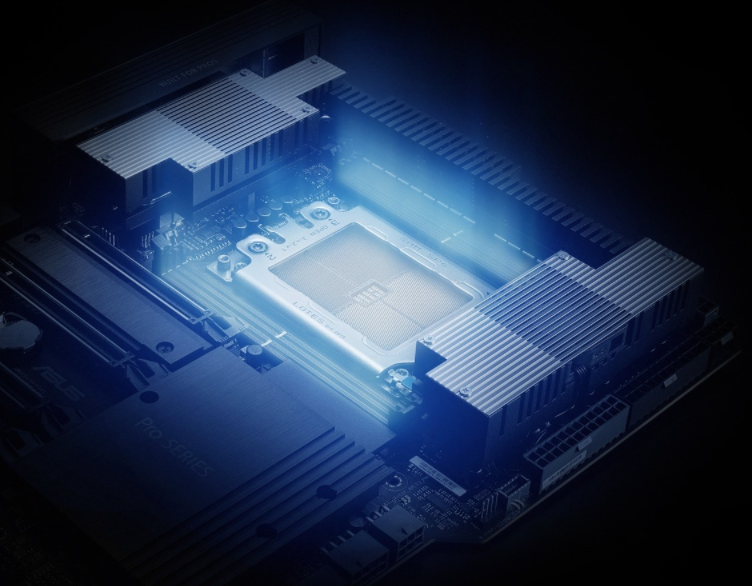

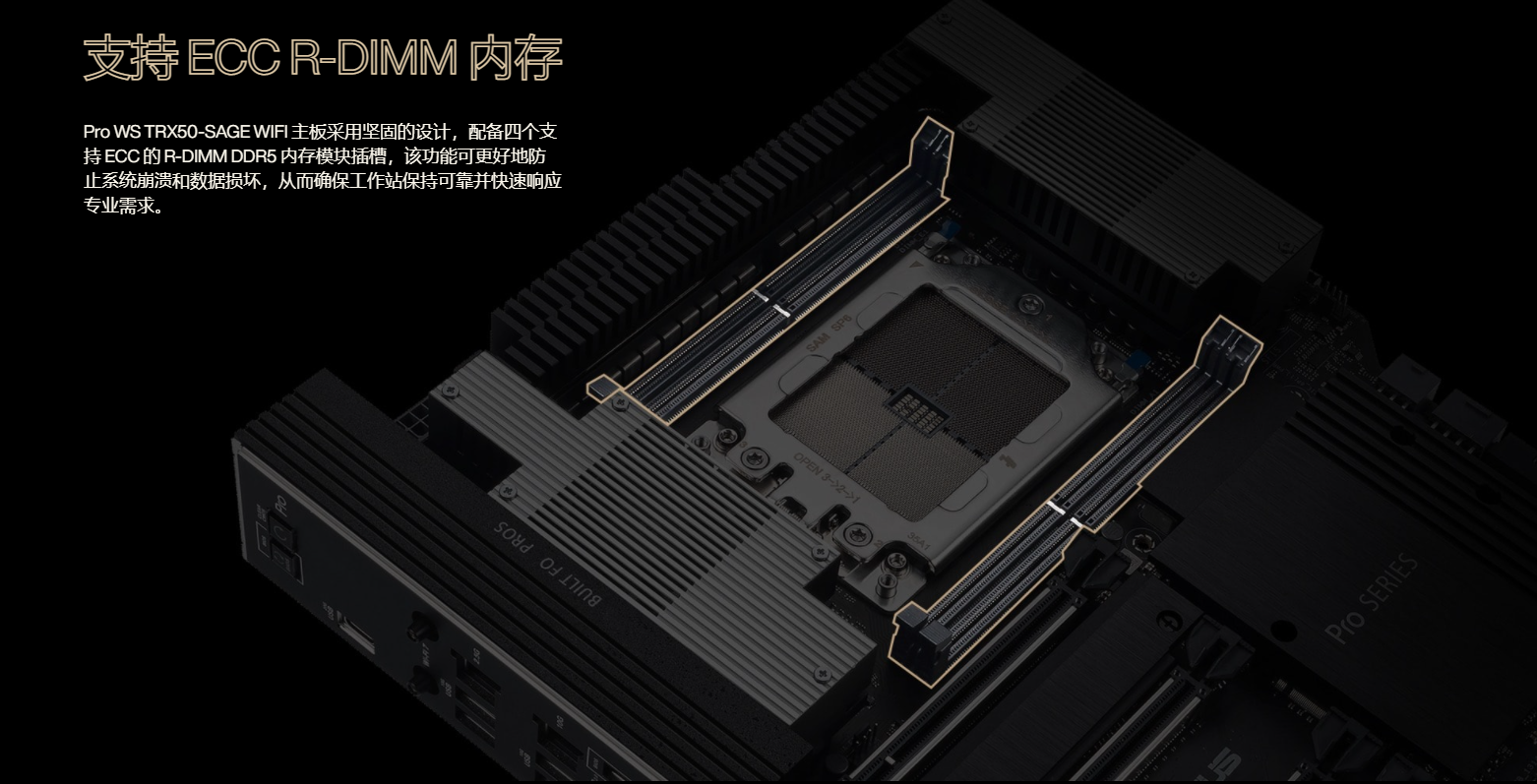

對于 AMD TR5 系列工作站和高端臺式機 (HEDT) 型號，AMD 提供 CPU 和 DRAM 超頻選項。為了充分釋放處理器的性能，華碩在 Pro WS TRX50-SAGE WIFI 主板創新地采用了雙電源設計。憑借強大的供電設計和先進的散熱模塊，實現出色的超頻穩定性。主板的硬件開關和出色的 BIOS 設置，軟硬結合，為超頻發燒友將性能推向界限提供更大的便利性。您可通過啟用 EXPO 設置進一步提高內存性能。 EXPO和ECC R-DIMM 全方位兼顧了強大的性能與優異的穩定性，為工作站和高端臺式電腦運算樹立了新標準。
創新散熱與強勁性能

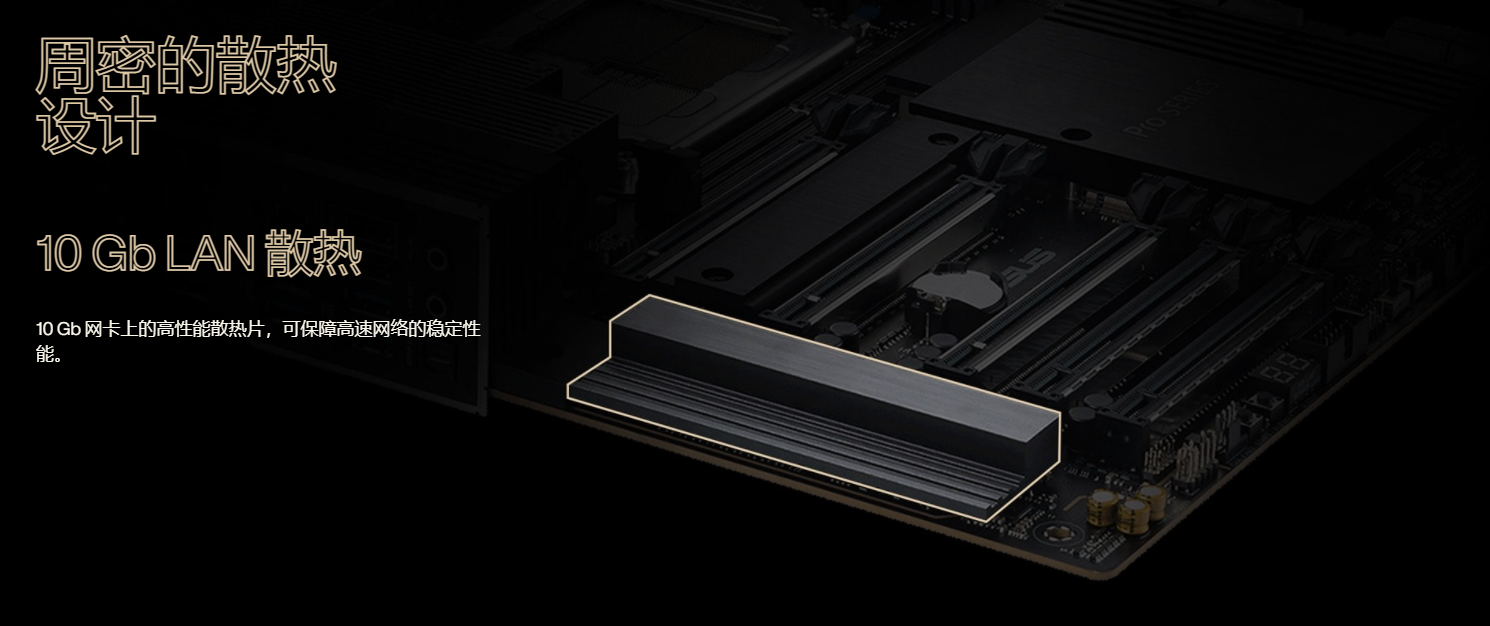

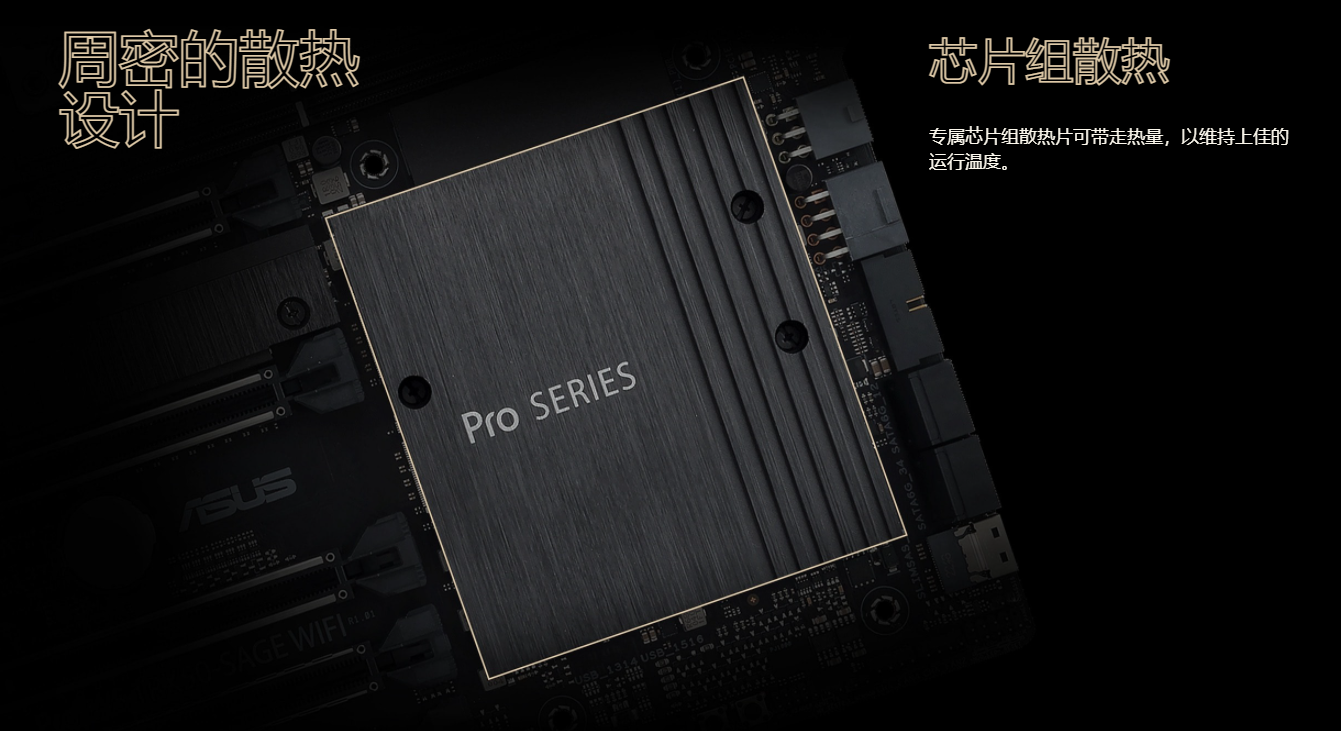

多方位散熱設計與高效生產力

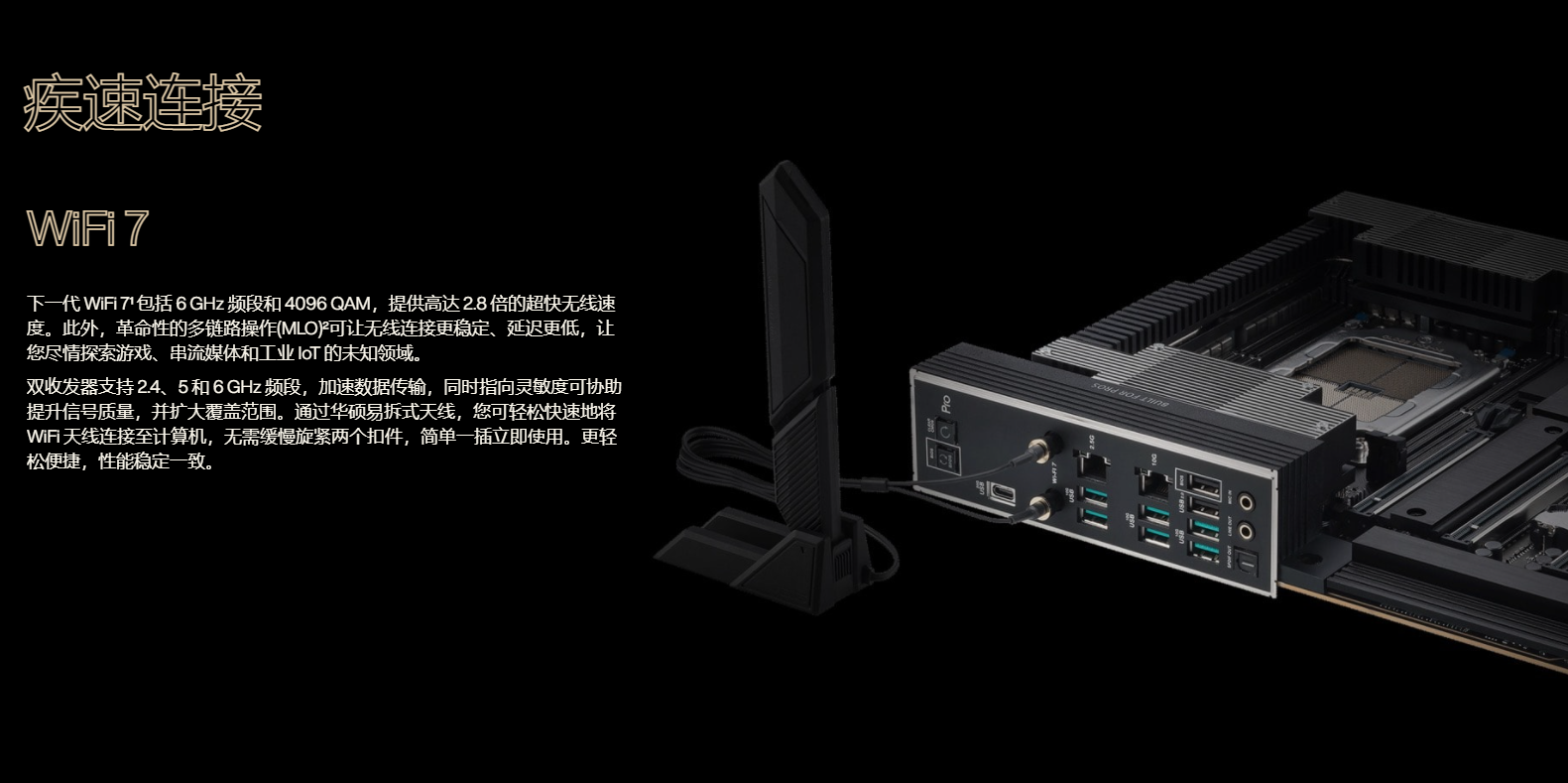

疾速連接
疾速網絡
Marvell? AQtion 10 Gbp 網卡
帶寬最高可達標準 Gigabit 網卡的 10 倍，高速播放未壓縮的 4K UHD 視頻，執行系統備份和傳輸大型文件。
Intel? 2.5 Gb 網卡帶你飚速
與標準 1Gb 網卡相比，傳輸速度提高 2.5 倍，實現更快的下載速度和更流暢的高清視頻播放。
24/7 可靠性
全天候的可靠性
Pro WS TRX50-SAGE WIFI 主板專為全天候運行優化，在高達 45°C 的溫度和高達 80% 的濕度下進行測試，確保它可以在各種環境中正常運行。
技術規格
256 Mb Flash ROM, UEFI AMI BIOS

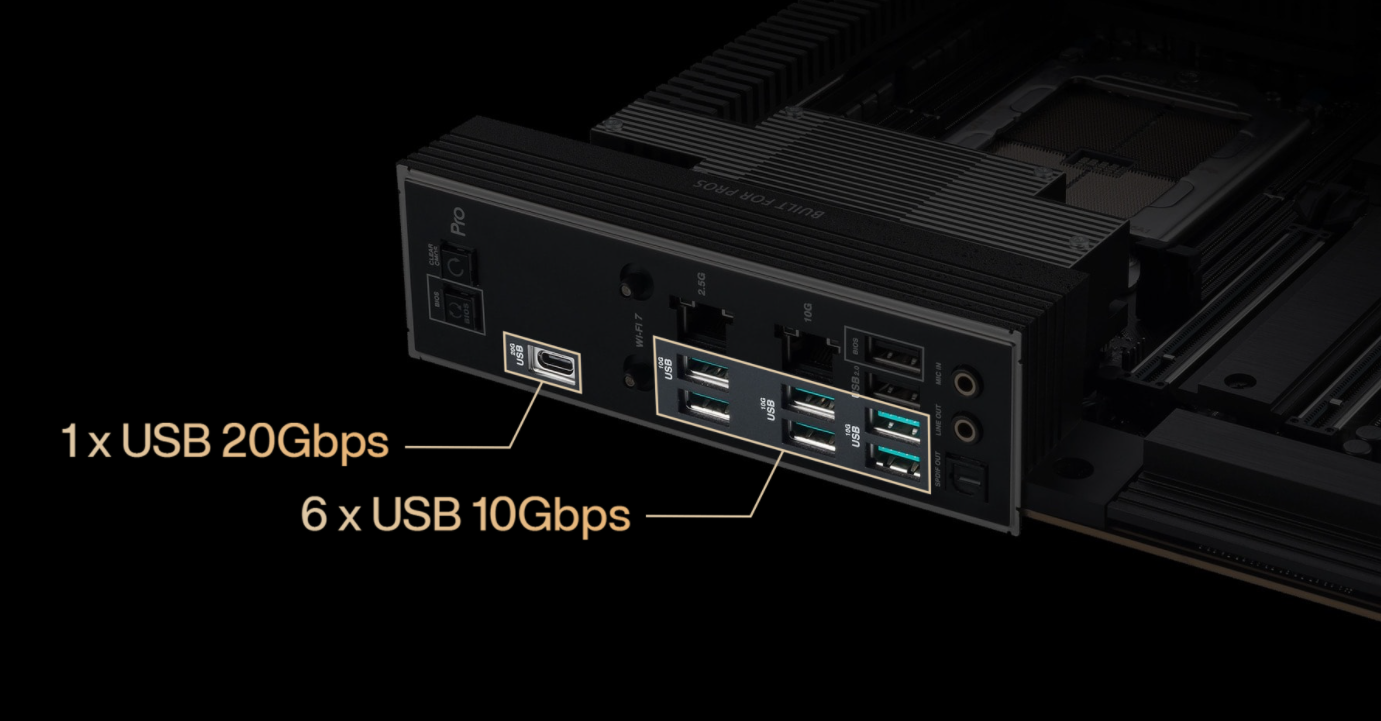

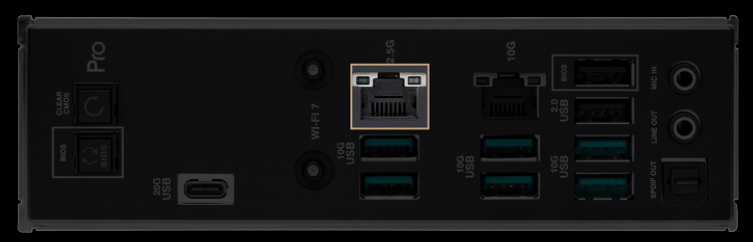

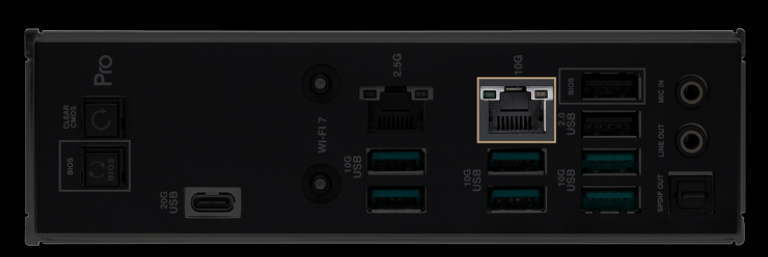

Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C?)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)

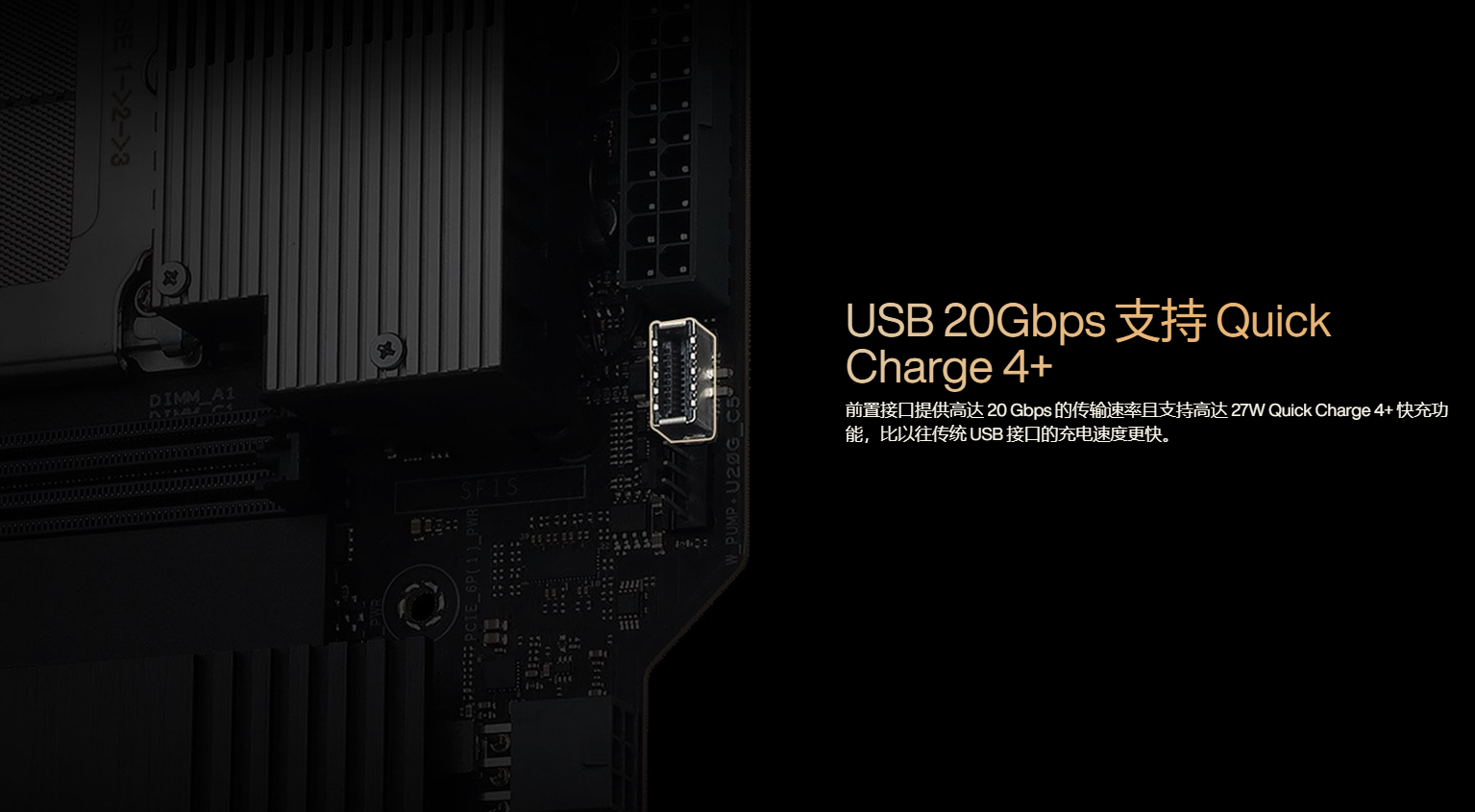

1 x USB 20Gbpsconnector (supports USB Type-C? with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

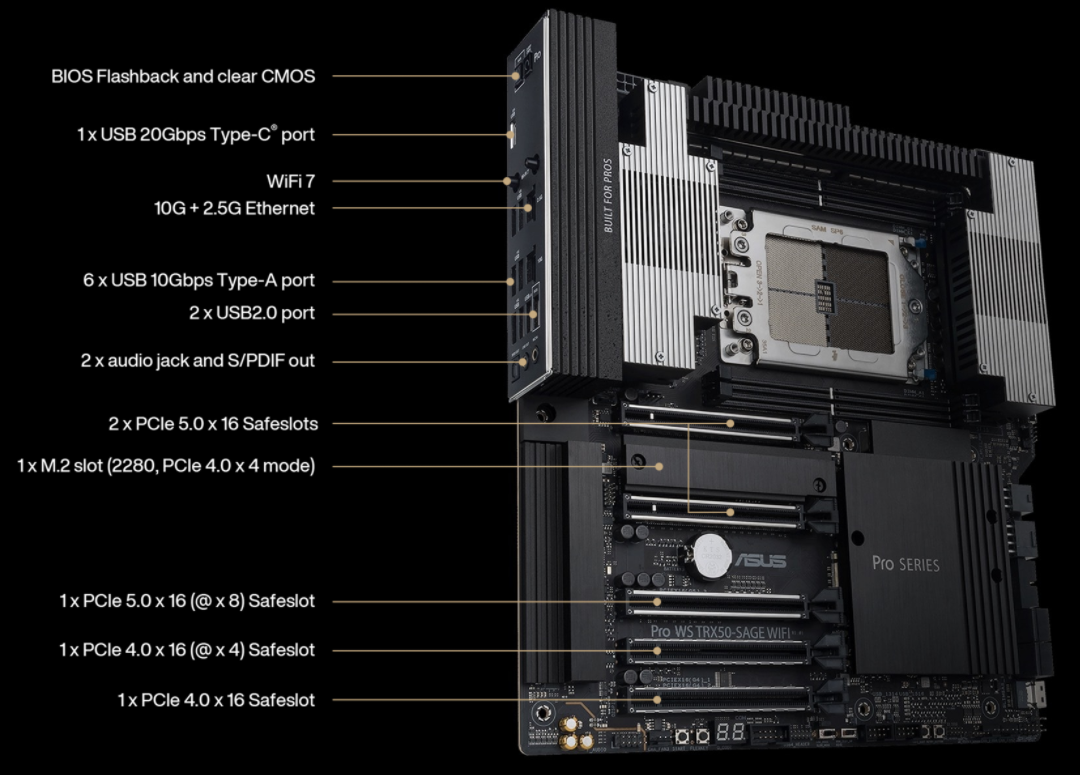

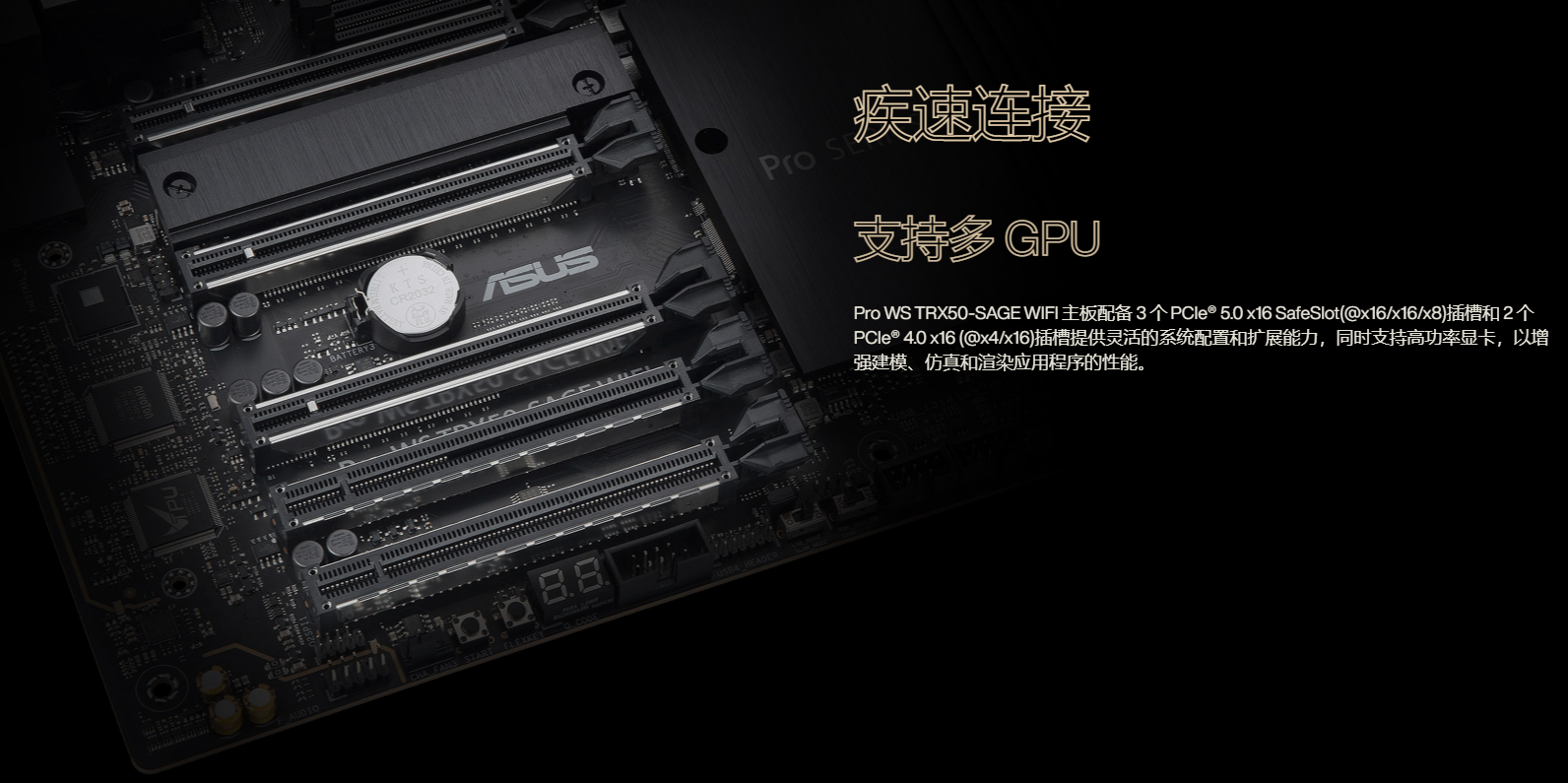

2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)

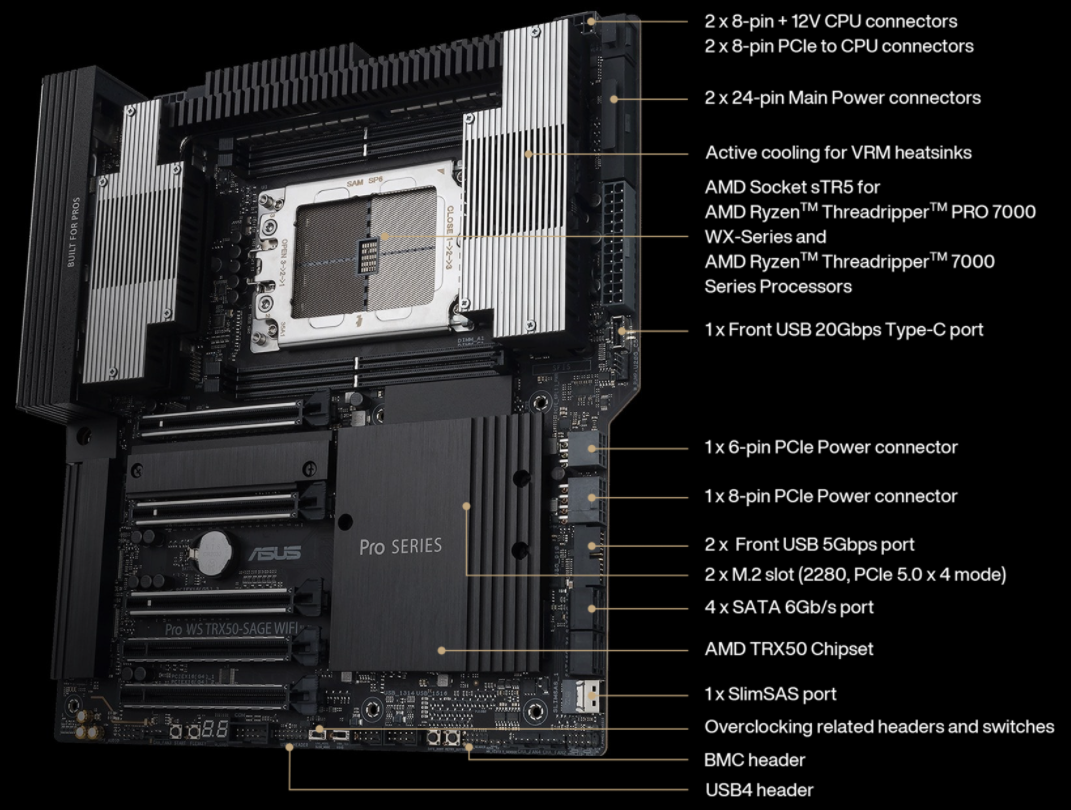

Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related

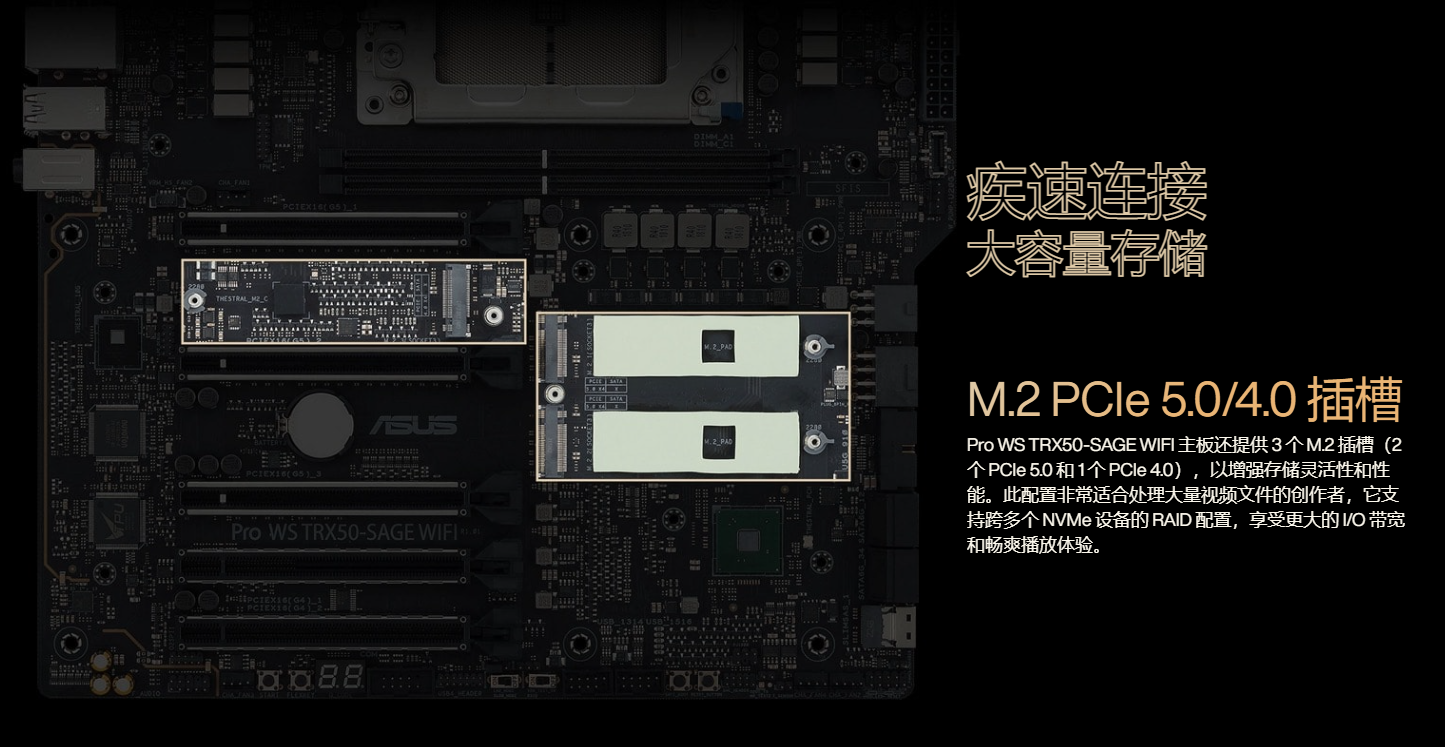

3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

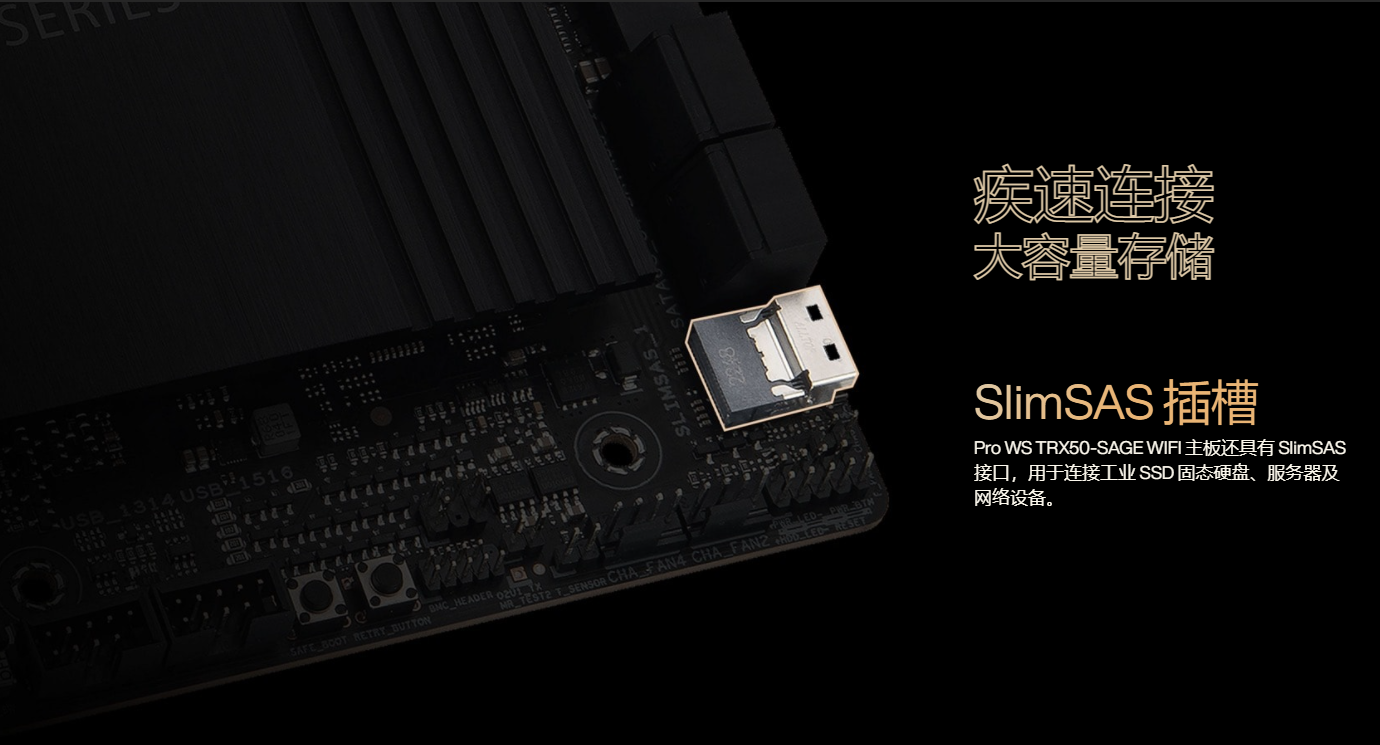

1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C?
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header1 x COM Port header

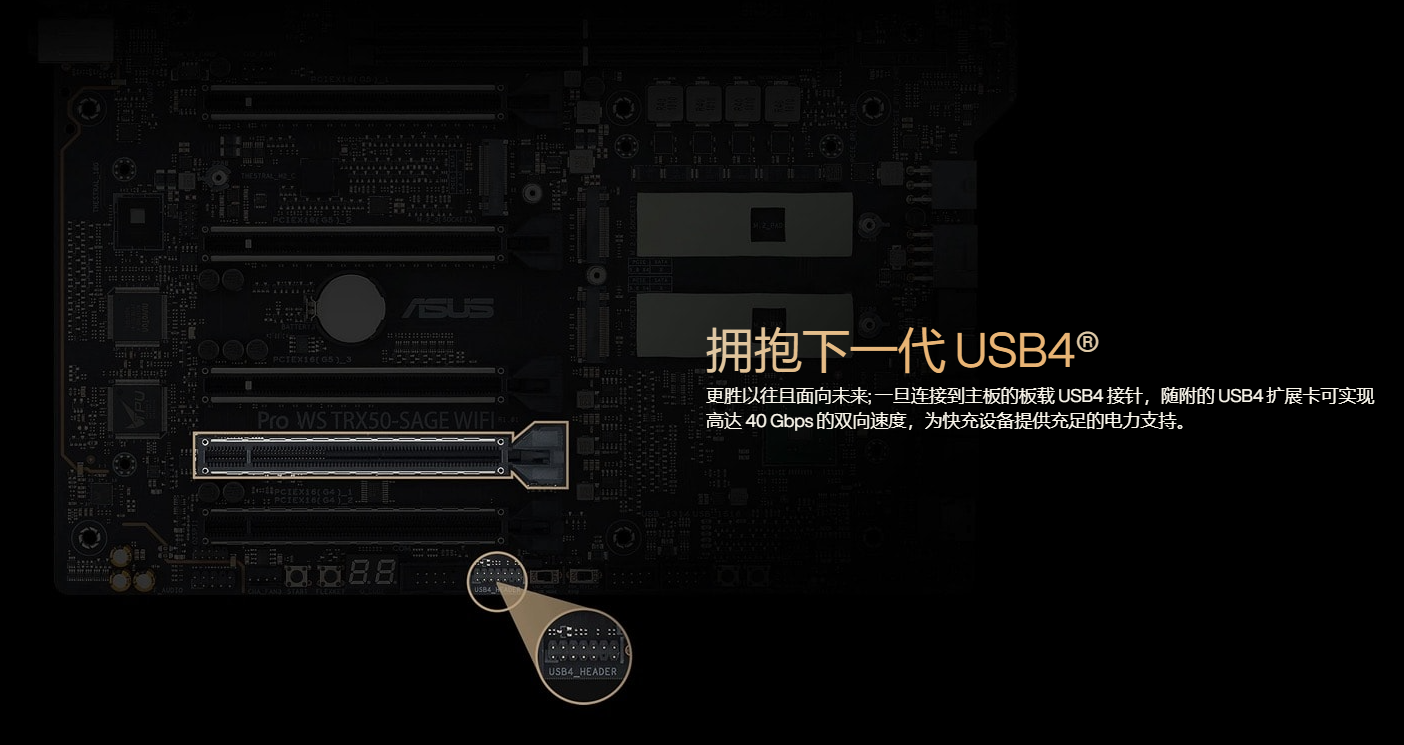

1 x USB4 header1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell? AQtion 10Gb Ethernet port
1 x Intel? 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack? button
1 x Clear CMOS button
ASUS Q-Design
- Q-Code

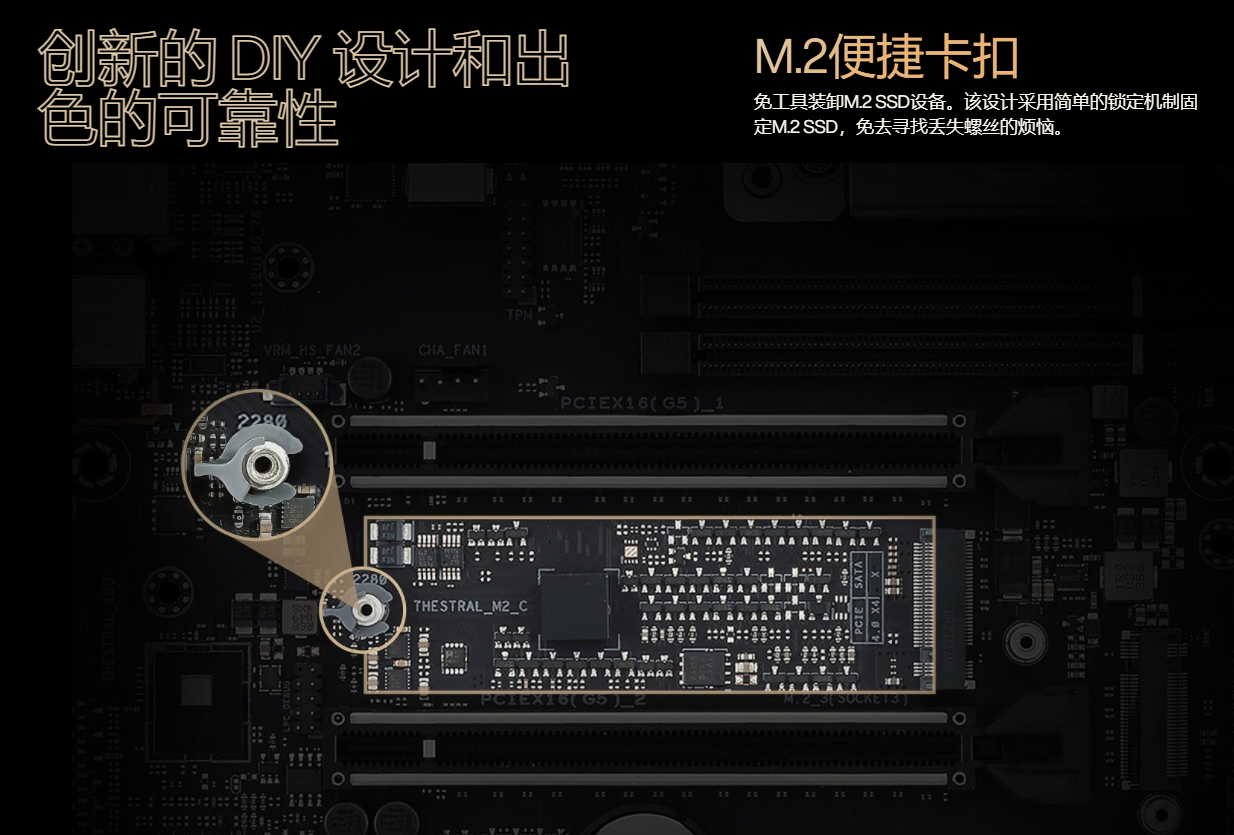

- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution

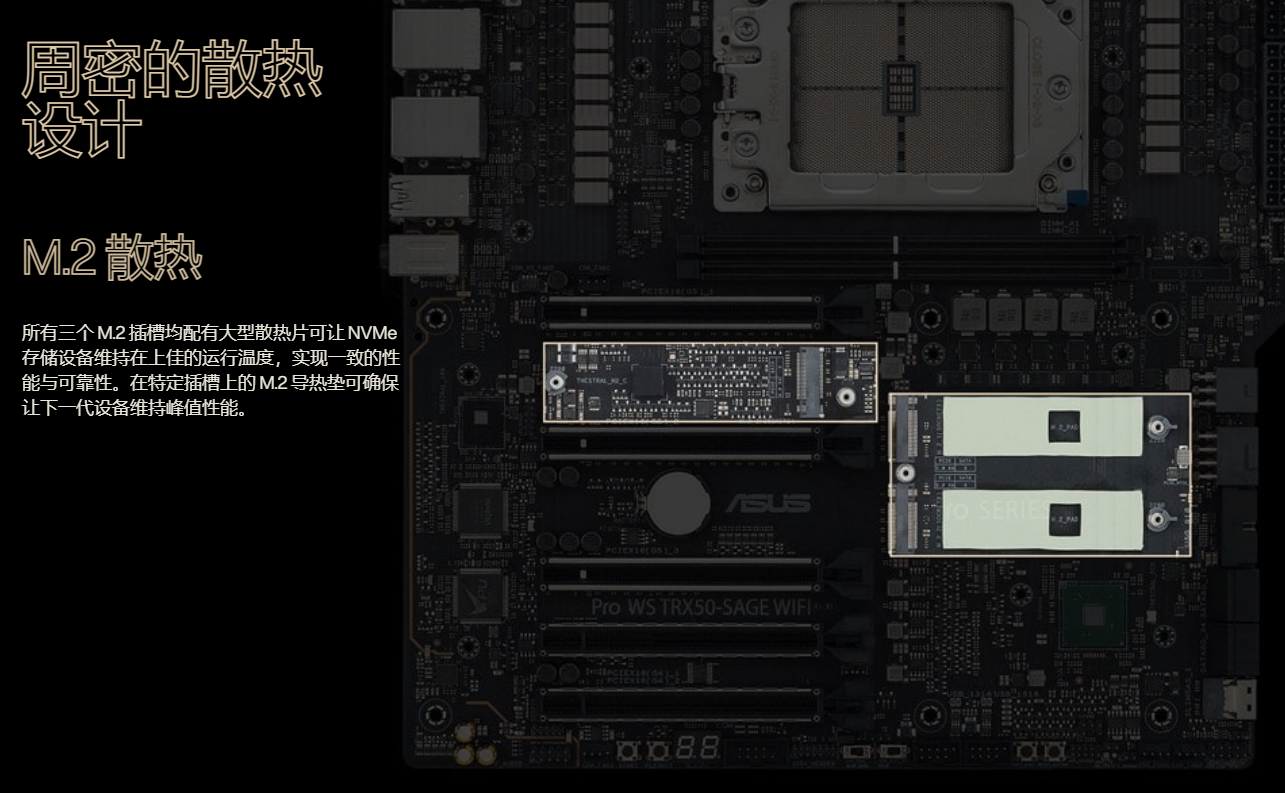

- M.2 heatsink and onboard thermal pads

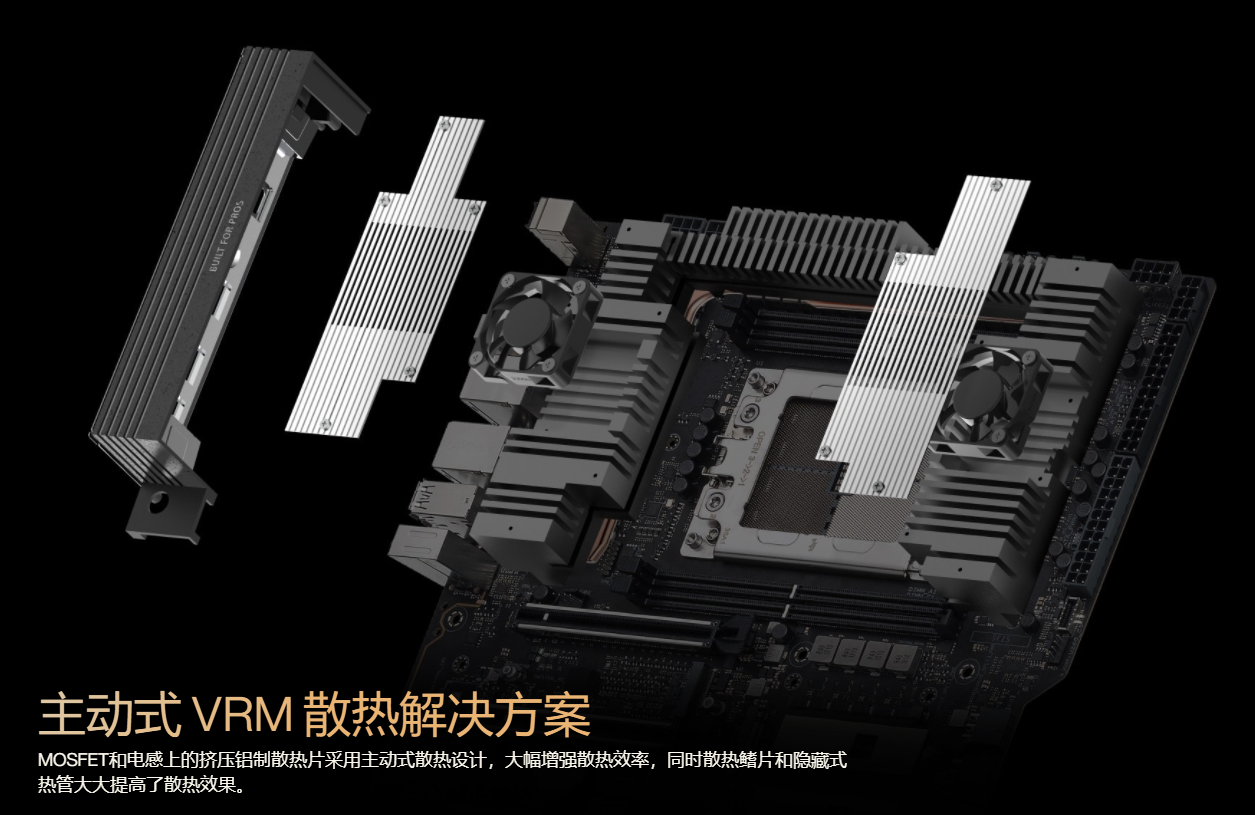

- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack? button
- BIOS FlashBack? LED
- Clear CMOS button

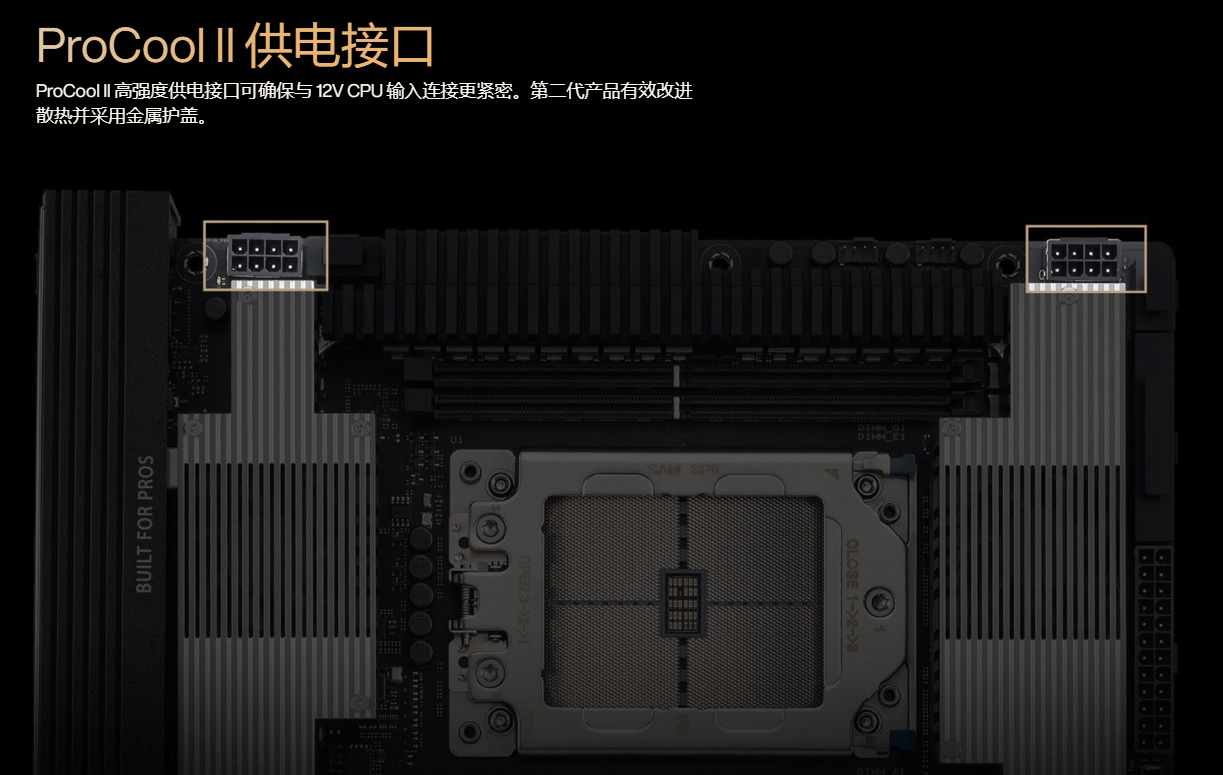

- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMMBespoke
Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connectorDocumentation
1 x ACC Express Activation Key Card
1 x QSG
CEB Form Factor
12 inch x 11 inch
(30.5 cm x 28.0 cm)
